Granite bridge and base frame combination structure, granite

Writer： admin Time：2020-11-18 21:23 Browse：℃

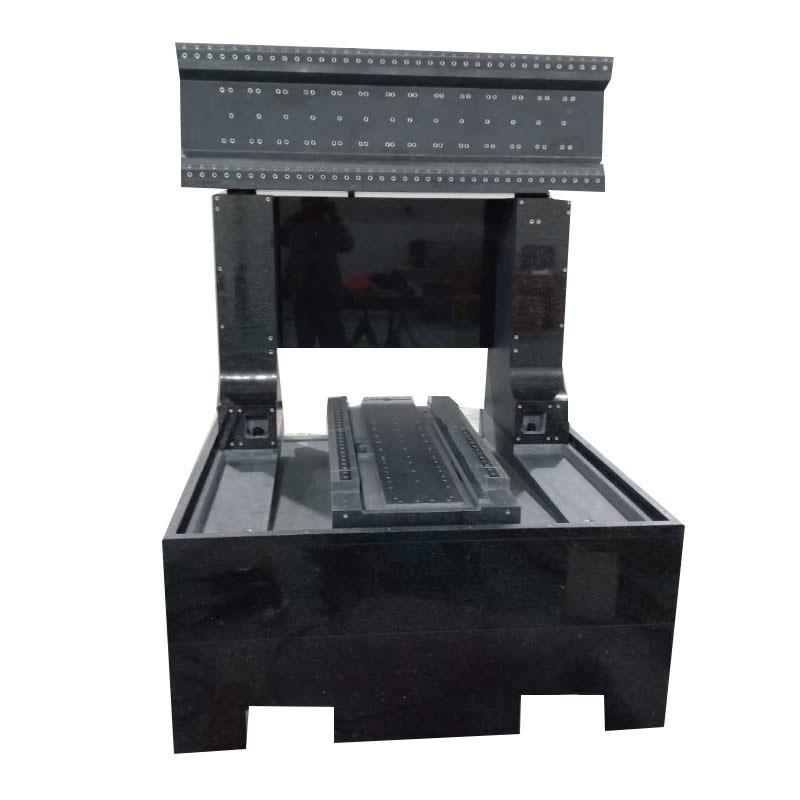

Granite base, frame, and gantry integration structure for automatic optical inspection machine.There are 200 holes with thread insert on the granite beams. slotted on the granite base, the surface of the bottom meets 2um. The granite structure dimension: 850mm*800mm*1200mm, weight: 900kg.
