00 class inspection tabletop made up by the metal frame and

Writer： admin Time：2020-11-18 22:21 Browse：℃

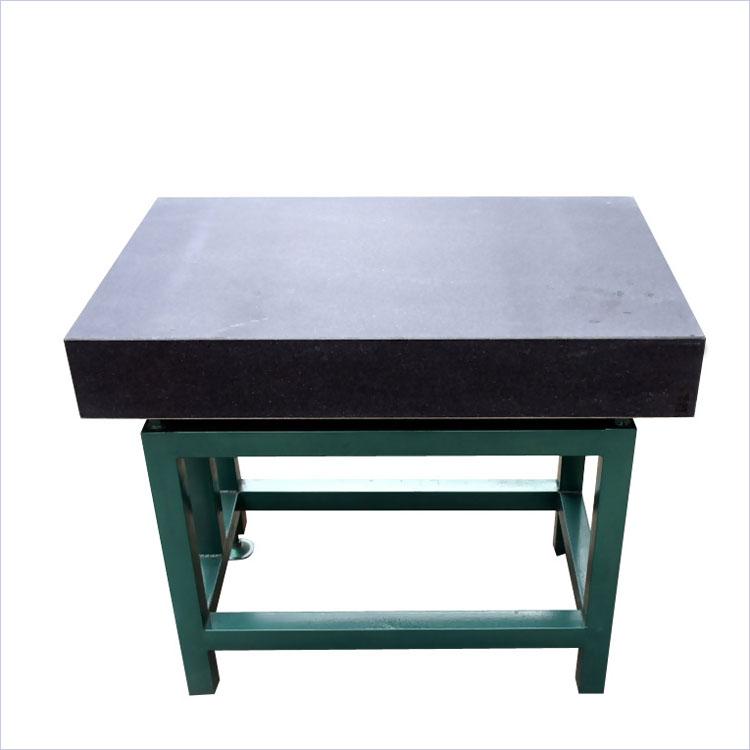

Both the granite precision surface plate accuracy and rigidity meet JIS standard. Resistant to scratches due to the excellent anti-abrasion, corrosion resistance. The granite plate of measurement inspect tabletop flatness≧0.01mm. There is a receptacle for the level jack on the back of the surface plate.This granite inspection tabletop high: 1000mm including the frame. (granite plate high: 100mm, flatness meet around 2um) width: 1000mm, length:2000mm. Total weight: 800kg。Rolled steel Welded construction Frame or Stand for precision granite surface plates exclusively .
Shifting and dropping of the precision granite surface plate is kept to a minimum by the built-in leveling screw jack.
Surface plate height is possible by level adjustment using a foot screw jack.You could opt installed universal wheel assist, it move conveniently.
